This page will detail the post CBS Standard Telecasters with Humbuckers up to 2017.
These are the
US Fat Tele renamed the American Fat Tele
The HH Version 1 and Version 2
The HS Version1 and Version 2
The US Fat Tele
This was launched in 1998 as a variation of the American Standard and continued until 2003. In 2001 it was renamed the
American Fat Tele it was then part of the Hot rodded American series.
Specifications
Body Alder or Ash Gloss Urethane Finish
Neck Maple TRA at Headstock Micro Tilt Slim C Skunk Stripe Satin Back High Gloss Front
Fretboard Maple or Rosewood 22 Frets Medium Jumbo 9.5" radius*
Headstock As American Series
Tuners Fender Branded sealed Diecast staggered height
Pickups 2 1 chrome covered Fender DH1 Humbucker at neck 1 Black set in the bridge US Standard Tele single coil Alnico V
Controls 1 Volume 1 Delta no load Tone Knurled Chrome 5 way selector including coil split options
Nut Synthetic Bone 43mm
Neckplate Fender stamped horizontal with Corona California underneath
Hardware Chrome
Bridge 6-Saddle American Standard Strings-Through-Body Tele Flat Steel Saddles
Pickguard 8 Screw 3 ply Perloid
Colours on launch 3 Colour Sunburst, Olympic White, Black or Candy Apple Red
As a comparison colours in 2002 were 3 Colour Sunburst, White Blonde, Black or Candy Apple Red
* When the name changed in 2001 the Maple option was discontinued.

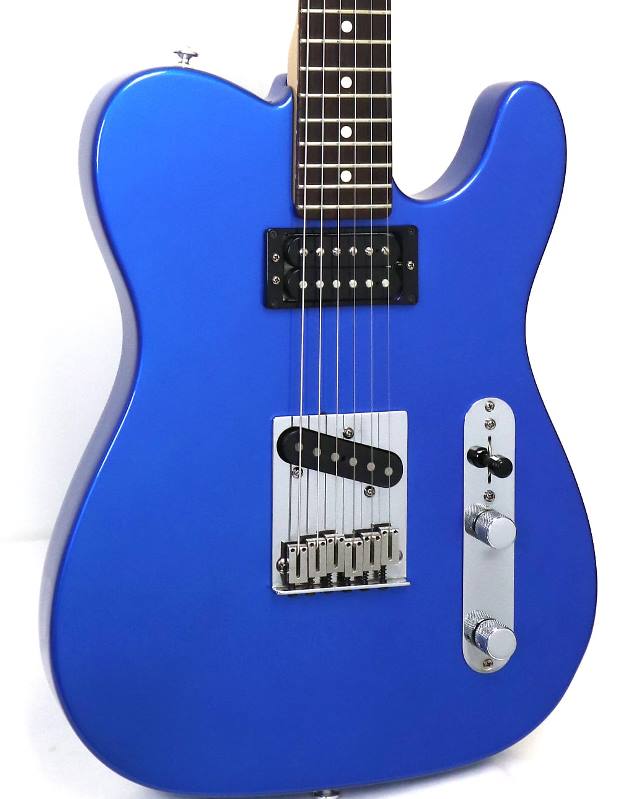

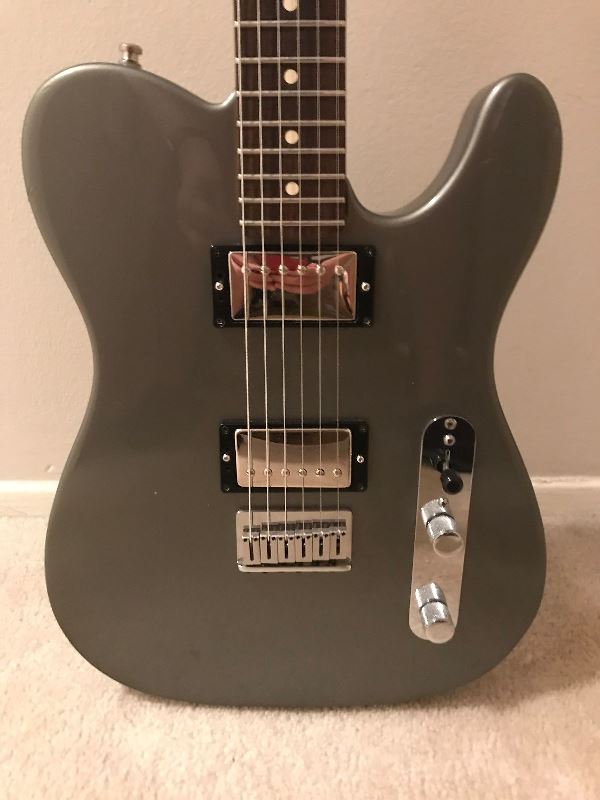

HH and HS Version 1
These models were produced in 2003 and replaced by Version 2 in 2004. They are pretty much an American Series with
pickup variations and a different appearance having no pickguard.
Here are the full specs
Body Alder Gloss Urethane Finish
Neck Maple TRA at Headstock Micro Tilt Slim C Skunk Stripe Satin polyurethane finish
Fretboard Maple or Rosewood 22 Frets Medium Jumbo 9.5" radius*
Headstock As American Series
Tuners Fender Branded sealed Diecast staggered height
Pickups HS 2 1 Black Coverless Fender DH1 Humbucker at neck 1 Black set in the bridge US Standard Tele single coil Alnico V
HH 2 black Coverless Fender DH1 Humbuckers
Controls 1 Volume 1 Delta no load Tone Knurled Chrome 3 way selector
Nut Synthetic Bone 43mm
Neckplate Fender stamped horizontal with Corona California underneath
Hardware Chrome
Bridge 6-Saddle American Standard Strings-Through-Body Tele Flat Steel Saddles see pictures below
Pickguard None
Colours Black, Chrome Red, Pewter or Chrome Blue

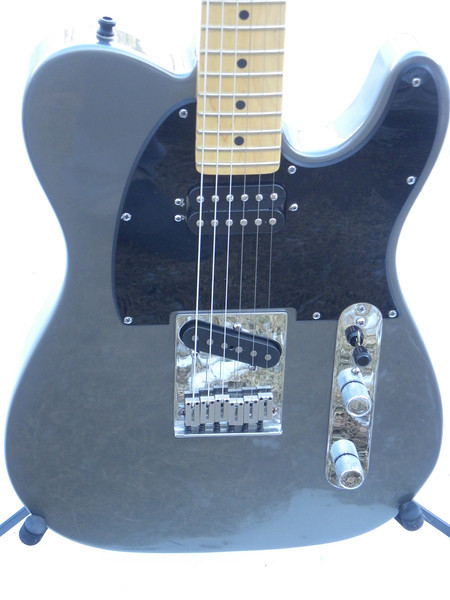

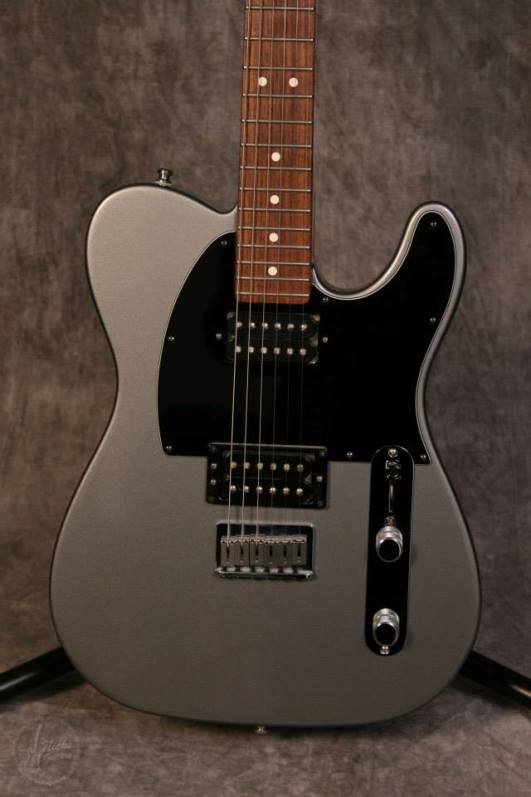

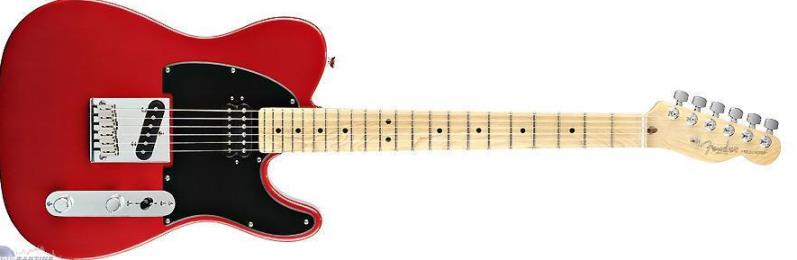

HH and HS Version 2
Essentially the same as the Version 1 except both guitars get an 8 hole 3 ply Black Pickguard and the HS now has a push pull
volume control to split the humbucker.
Available in the same colours as the Version 1
Comment from John C on the Telecaster Forum
I don't know the rhyme or reason but some of the HS v2s had the S-1 switch instead of the push/pull switch. Not sure if
it was an availability issue
(as in they used whichever kind of switch they had hanging around) or if it was some years had the S-1 and some had the push/pull.

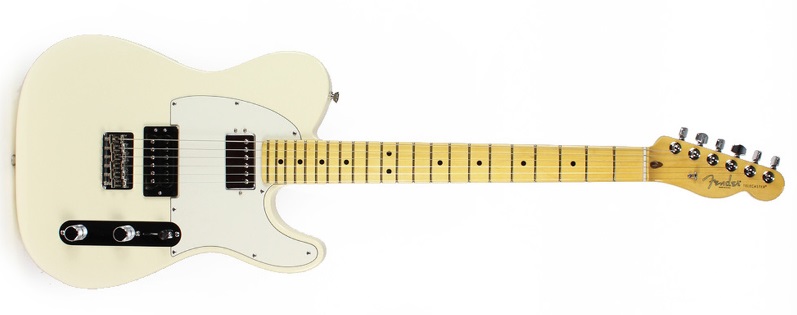

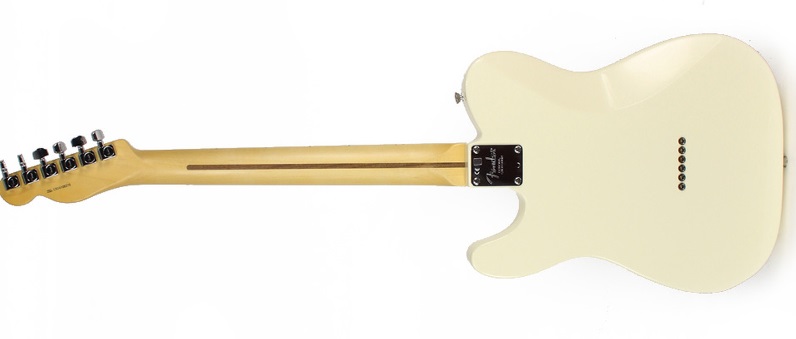

American Standard HH
This model was made from 2014 to 2016 essentially an American Standard with HH configuration
Body Alder Gloss Urethane Finish with "Belly cut"
Neck Maple TRA at Headstock Micro Tilt Slim C Skunk Stripe Satin polyurethane finish on back high gloss on front
Fretboard Maple or Rosewood 22 Frets Medium Jumbo 9.5" radius*
Headstock As American Standard
Tuners Fender Branded sealed Diecast staggered height
Pickups 2 twin head vintage style humbuckers coverless Alnico V at bridge Chrome covered Alnico II at neck
Controls 1 Volume 1 Delta no load Tone Knurled Chrome 3 way selector no coil tap
Nut Synthetic Bone 43mm
Neckplate Fender stamped horizontal with Corona California underneath
Hardware Chrome
Bridge 6-Saddle small hardtail strat style bridge
Pickguard 8 screw parchment
Colours with Rosewood board 3 colour sunburst or black with Maple board Ocean Blue Metallic or Olympic White
